City 125CC CUB Motorcycle 3.00-13 Size Tyre Wind Shild Front And Rear Disc Brake
Details:
| MAIN FUNCTIONS | |
| Size (LXWXH) :1900×680×1100mm | Displacement:124.9 |
| Wheelbase 1190mm | Compression Ratio:8.8:1 |
| Engine model: YB115/C125 | Carburetor: Equal vacuum type |
| Ground Clearance: 130mm | Max power: 6.5kw/7000r/min |
| Engine type: Single-cylinder Air-cooled, 4-stroke | Max. torque:9.0N•m(5000 r/min) |
| Fuel Capacity (l): 4.3L | Ignition: CDI |
| Wheels Front/rear: Aluminum rim | Starter: Electric/kick |
| Types Front: 2.50-17L/175Kpa | Shift type: 1-N-2-3-4 |
| Types Rear: 2.75-17P/225Kpa | Drive Train: Chain |
| Suspensions Front/Rear:Telescopic, coil spring, oil damped / Swing arm type, coil spring, oil damped | Spark plug:A6RTC/CR6HSA |
| Brakes Front:Drum/Disc | Bore×Stroke: 52.4×49.5mm |
| Brakes Rear: Drum/Disc | |
| Dry Weight: 95kg | |
| Max. loading: 150kg | |
| climbing ability: ≥16° | |
| Min fuel: 1.5L/100km | |
Product description:
1. Cub motorcycle manufacturing is our advantage compared with other factory, Technology R & D team with more than 10 years of experience for CUB motorcycle.
2. The new panel paint baking technology makes the whole CUB motorcycle body more shiny and dazzling. and double clutch populared in west Africa market.
3. ZS YB115 balance engine provides consistent and powerful and stable power output.
4. New designed high quality halogen headlight and turn light make the CUB motorcycle have more sport style. Provide continuous safety lighting.
5. Front and rear disc brake designed provide braking safety guarantee for on road dirt bike style street motorcycles in high-speed running.
5. 2 year or 30000 Km quality guarantee demonstrates our confidence in our products and our commitment to our customers.
6. 96 units SKD packing and 170 sets CKD packing help customers save transportation costs and avoid damage during the transportation.
Options:
MP3, USB, Remote Controller, Alarm
Customed Color And Sticker Design Is Accepted
Engine: YB110/Z110/C110/YB115
Lagguge: Rear rack/ Small rear carrier / Tail box
Wheel: Alloy wheel/Spoke wheel
Brake: Front disc brake/drum brake, Rear disc brake/drum brake
Clutch: Double clutch/Automatic single clutch

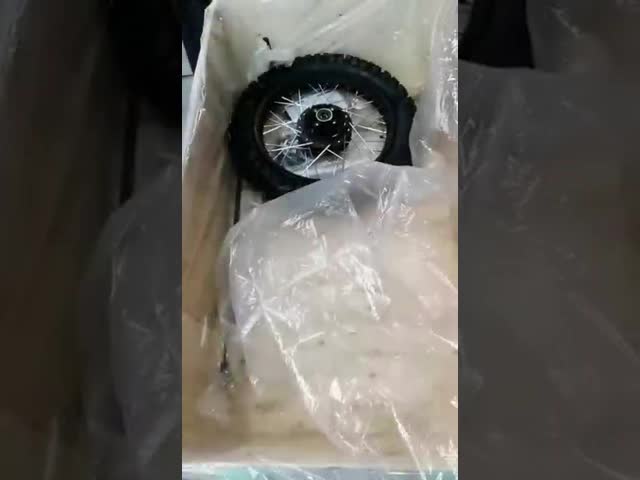

Product shows:
